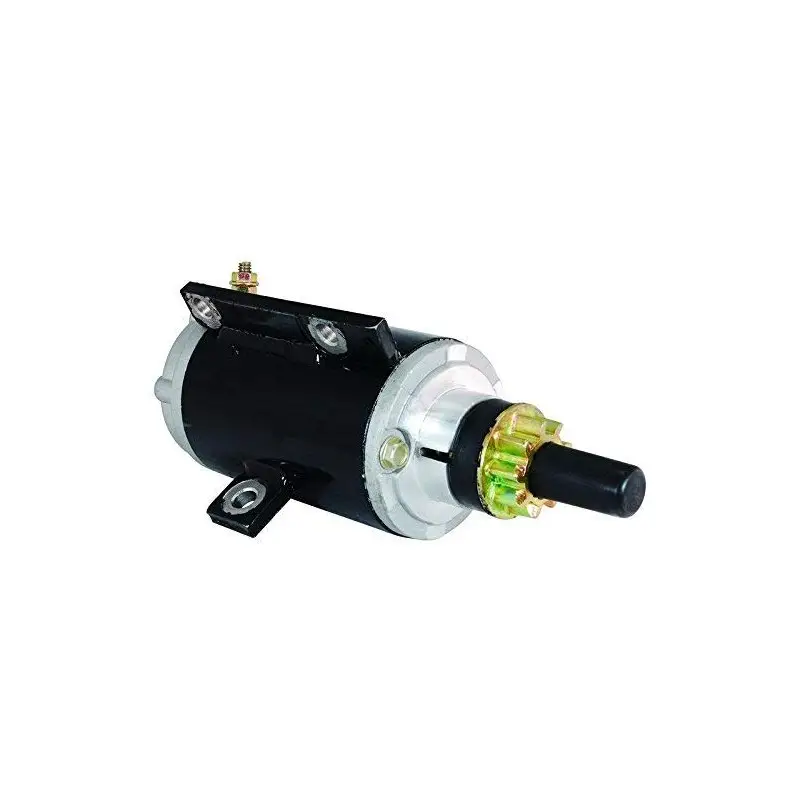

Description
Caractéristiques :
Voltage 12
KW 0.6
A = Flasque montage 63.40
B = Distance lanceur 44.00
F = Distance/arrière 131.50
G = Distance/avant 78.00
H = No. de dents 9
B+ M8
Type couronne Dd
O = Distance 70.00
Rotation Sens anti-horaire
No. trous de fixation 1 (0)
Type lanceur Acier
R = Longueur totale 209.00
marque générique
= Arco marine 5370
= Bombardier 0586281ds00
= United technologies SMH12B41 / SM17996 / SM10629 / SM02610 / 5704840-M030SM / 5704820M030SM
1799640MO30SM / 1799640-M030SM
= OMC 383691 / 386657 / 386671 / 391735 / 585050 / 585058 / 585197 / 586281
= Prestolite mgd4106 / mgd4110 / mgd4115 / poa4001 / poa4002
Original Reference Number 0261040, 1062940, 1799640, 5704840, 5723040, 5953640, Outboard Marine Corp (OMC) 383691, 384777, 386657, 391735, 585050, 585058, 585197, 586281, Prestolite 20513505TBA, 46-2118, 46-2196, 46-2438, 46-2447, 46-2502, 46-936, MGD4106, MGD4106A, MGD4110, MGD4115, POA4001, POA4002, United Technologies 0261040-M030SM, 0261040MO30SM, 1062940-M030SM, 1062940MO30SM, 1799640-M030SM, 1799640MO30SM, 5704840-M030SM, 5704840MO30SM, 5723040-M030SM, 5723040MO30SM, 5953640-M030SM, 5953640MO30SM, SM02610, SM10629, SM17996, SM57048, SM59536, SMH12B41
PAS DE CONSIGNE NI DE RETOUR DE L’ANCIEN
Montage sur
| Marque | Modèle | Type | Année |
| EVINRUDE | E50DTL | [56.1ci-50H.P.] | 01.1998-12.1998 |
| EVINRUDE | E50EL | [56.1ci-50H.P.] | 01.1998-12.1998 |
| EVINRUDE | E50TTL | [56.1ci-50H.P.] | 01.1998-12.1998 |
| EVINRUDE | E60EL | [49.7ci-60H.P.] | 01.1986-12.1988 |
| EVINRUDE | E60EL | [56.1ci-60H.P.] | 01.1998-12.1998 |
| EVINRUDE | E60TL | [49.7ci-60H.P.] | 01.1986-12.1988 |
| EVINRUDE | E60TL | [56.1ci-60H.P.] | 01.1998-12.1998 |
| EVINRUDE | E60TTL | [56.1ci-60H.P.] | 01.1998-12.1998 |
| EVINRUDE | E65 | [44.9ci-65H.P.] | 01.1969-12.1979 |
| EVINRUDE | E65RWL | [49.7ci-65H.P.] | 01.1985-12.1986 |
| EVINRUDE | E65TEL | [49.7ci-65H.P.] | 01.1985-12.1986 |
| EVINRUDE | E65WML | [49.7ci-65H.P.] | 01.1986-12.1988 |
| EVINRUDE | E65WML | [56.1ci-65H.P.] | 01.1989-12.1989 |
| EVINRUDE | E70EL | [49.7ci-70H.P.] | 01.1980-12.1985 |
| EVINRUDE | E70EL | [56.1ci-70H.P.] | 01.1986-12.1997 |
| EVINRUDE | E70TL | [49.7ci-70H.P.] | 01.1984-12.1985 |
| EVINRUDE | E70TL | [56.1ci-70H.P.] | 01.1986-12.1997 |
| EVINRUDE | E70TTL | [56.1ci-70H.P.] | 01.1991-12.1995 |
| EVINRUDE | E75E | [49.7ci-75H.P.] | 01.1984-12.1988 |
| EVINRUDE | E75ER | [49.7ci-75H.P.] | 01.1980-12.1983 |
| EVINRUDE | E75ERL | [49.7ci-75H.P.] | 01.1980-12.1980 |
| EVINRUDE | E75TL | [49.7ci-75H.P.] | 01.1984-12.1984 |
| EVINRUDE | E75TRL | [49.7ci-75H.P.] | 01.1981-12.1983 |
| JOHNSON | 65TEL | [49.7ci-65H.P.] | 01.1985-12.1986 |
| JOHNSON | 65W | [56.1ci-65H.P.] | 01.1999-12.2001 |
| JOHNSON | 70EL | [49.7ci-70H.P.] | 01.1980-12.1985 |
| JOHNSON | 70PL | [56.1ci-70H.P.] | 01.1999-12.2001 |
| JOHNSON | 70TL | [49.7ci-70H.P.] | 01.1984-12.1985 |
| JOHNSON | 70TL | [56.1ci-70H.P.] | 01.1998-12.1998 |
| JOHNSON | 70VL | [56.1ci-70H.P.] | 01.2001-12.2001 |
| JOHNSON | 75E | [49.7ci-75H.P.] | 01.1980-12.1988 |
| JOHNSON | 75ER | [49.7ci-75H.P.] | 01.1983-12.1983 |
| JOHNSON | 75ERL | [49.7ci-75H.P.] | 01.1980-12.1980 |
| JOHNSON | 75TL | [49.7ci-75H.P.] | 01.1980-12.1984 |
| JOHNSON | 75TRL | [49.7ci-75H.P.] | 01.1983-12.1983 |
| JOHNSON | 40JPL Jet | [44.9ci-40H.P.] | 01.1999-12.2001 |
| JOHNSON | 50D | [56.1ci-50H.P.] | 01.1998-12.1998 |
| JOHNSON | 50TT | [56.1ci-50H.P.] | 01.1998-12.1998 |
| JOHNSON | 60EL | [49.7ci-60H.P.] | 01.1986-12.1988 |
| JOHNSON | 60PL | [56.1ci-60H.P.] | 01.1999-12.2001 |
| JOHNSON | 60TL | [56.1ci-60H.P.] | 01.1998-12.1998 |
| JOHNSON | 60TTL | [56.1ci-60H.P.] | 01.1998-12.1998 |
| JOHNSON | 65 | [44.9ci-65H.P.] | 01.1969-12.1979 |
| JOHNSON | 65CWML | [49.7ci-65H.P.] | 01.1987-12.1987 |
| JOHNSON | 65RWL | [49.7ci-65H.P.] | 01.1985-12.1986 |
